KANT-TWIST® Padded Jaw Clamps
The Padded Jaw of these KANT-TWIST® Cantilever Clamps gives you exceptional clamping force while helping protect delicate work piece surfaces.
OVERVIEW
The KANT-TWIST Padded Jaw clamps feature soft round pads for holding soft materials like wood, plastic, synthetics, aluminum or fine finish/polished metals. They utilize the same innovative cantilever concept as in our other KANT-TWIST clamps that eliminates the problematic distorting and twisting of your work pieces. They provide the same strong, 4:1 clamp ratio but with a non-marring clamping face to protect delicate surfaces.
Non-marring clamps have soft round pads for holding soft materials like wood, plastic, synthetics, aluminum or fine finish/polished metals. No turning, twisting or digging into surfaces like screw-type clamps.
Benefits
- Non-marring padded clamping jaws
- Won't walk off-center
- Much lighter than C-Clamps
- Greater clamping power than other clamp style
- Made in USA!
KANT-TWIST® Padded Jaw Clamps Products
| SKU | Weight | Handle Diameter | Handle Length | Handle Type | Maximum Jaw Capacity | Open Width | Overall Length | Thickness | Throat Depth Closed | Throat Depth Open | Maximum Clamp Force | In Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

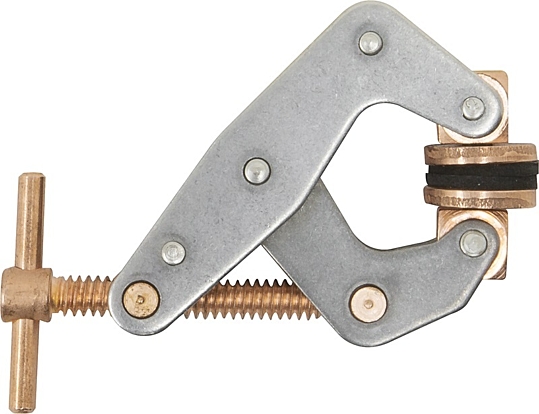

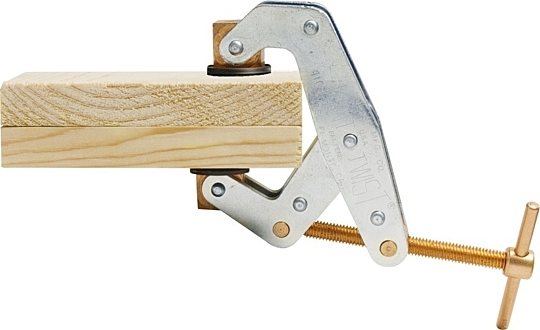

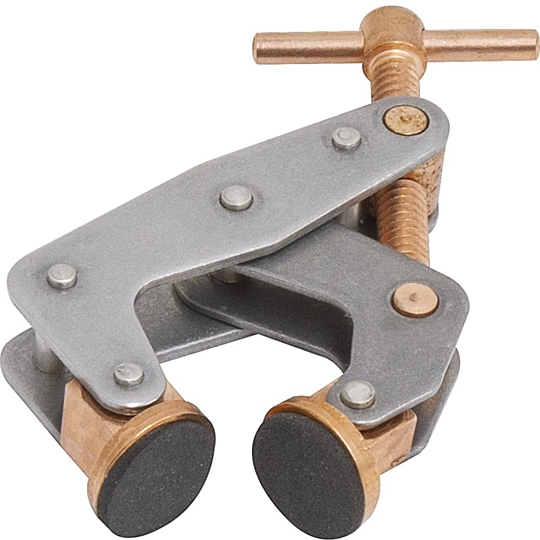

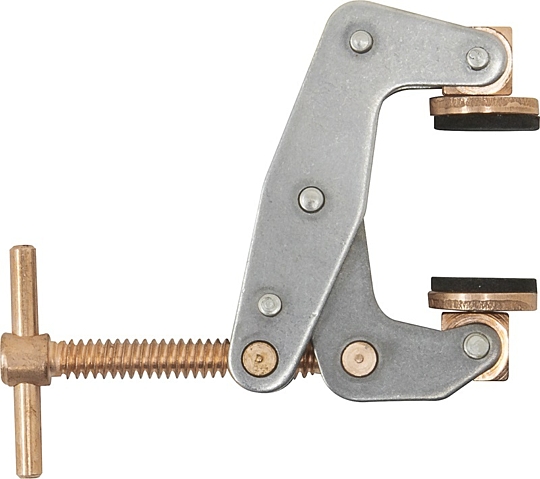

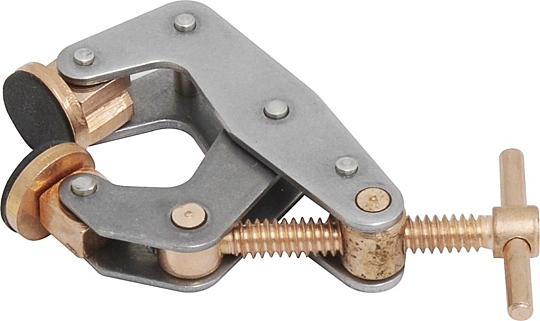

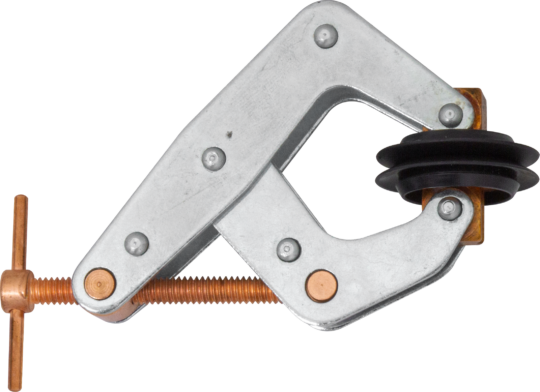

 Switch to product variant SKU K010TP | 0.1 | 0.125 | 1 | T-Handle | 1 | 1.75 | 2.5 | 0.5 | 0.5 | 0.5 | 350 | |

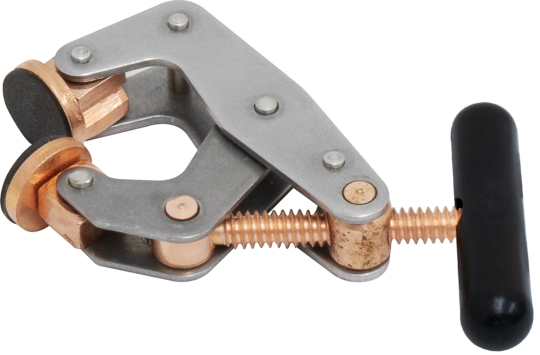

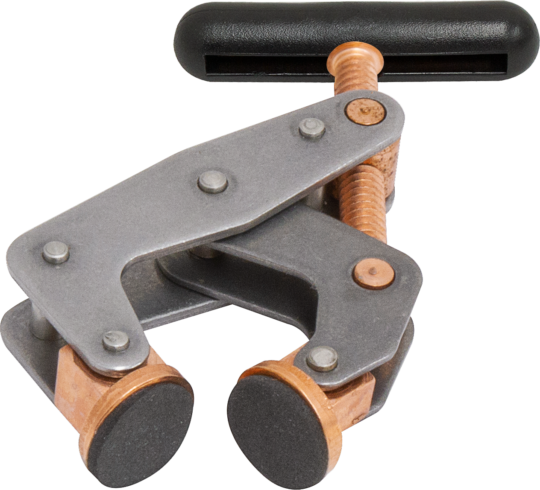

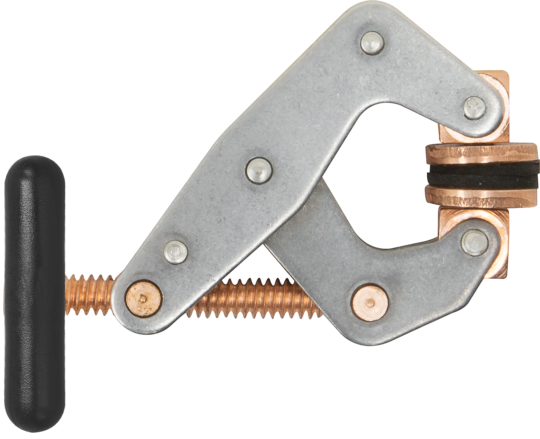

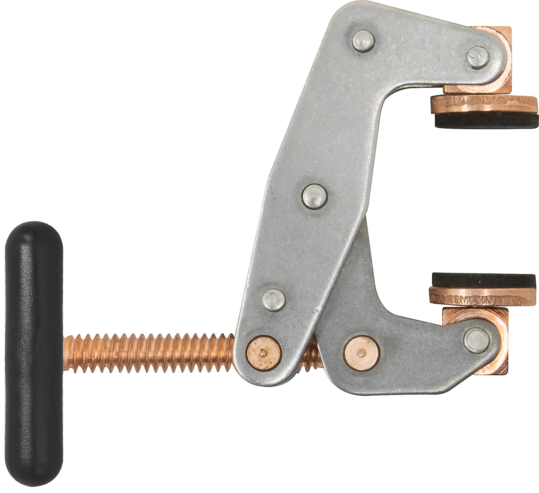

 Switch to product variant SKU K010TPW | 0.1 | 0.125 | 1 | T-Handle | 1 | 1.75 | 2.5 | 0.5 | 0.5 | 0.5 | 350 | |

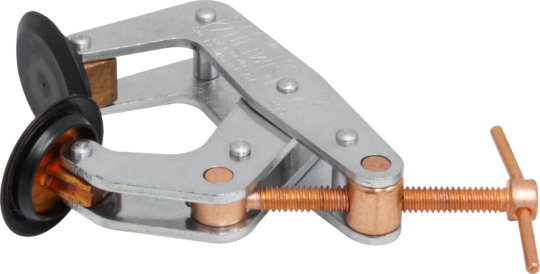

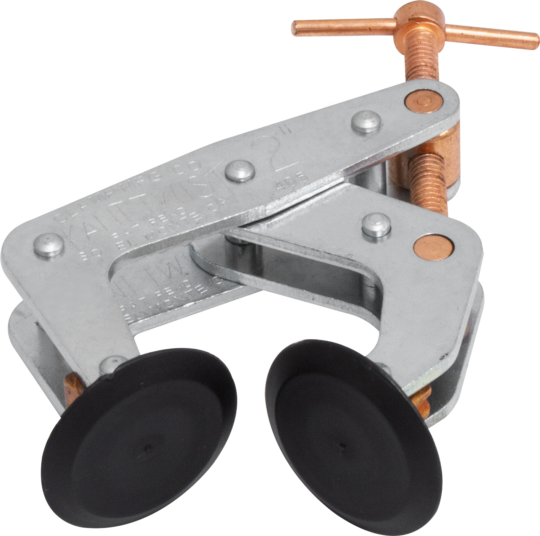

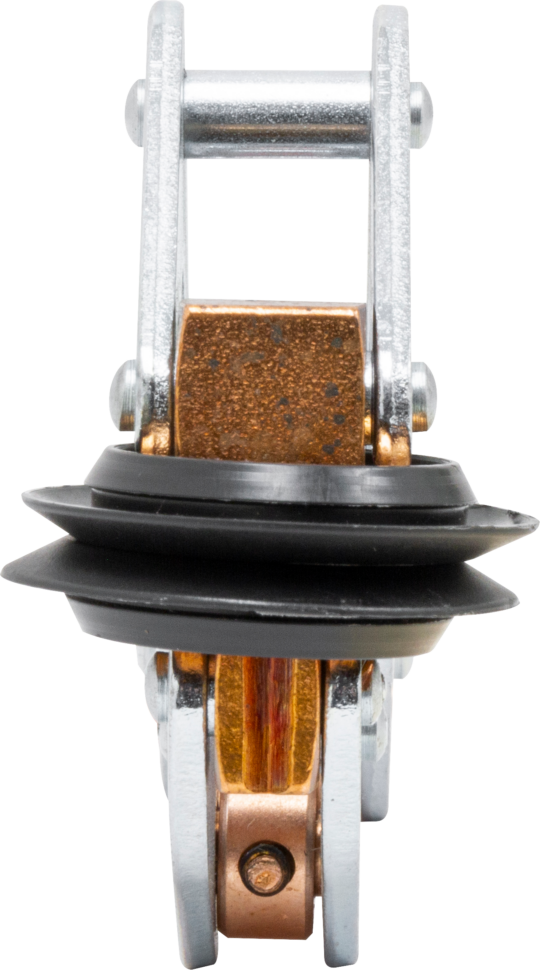

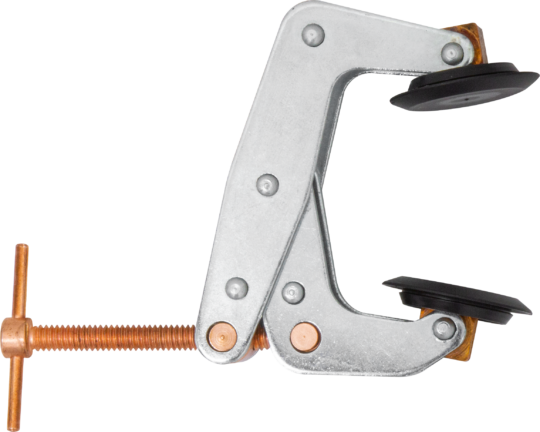

 Switch to product variant SKU K020TP | 0.46 | 0.125 | 1.75 | T-Handle | 2 | 3.25 | 4.5 | 1.375 | 1.25 | 1.125 | 800 | |

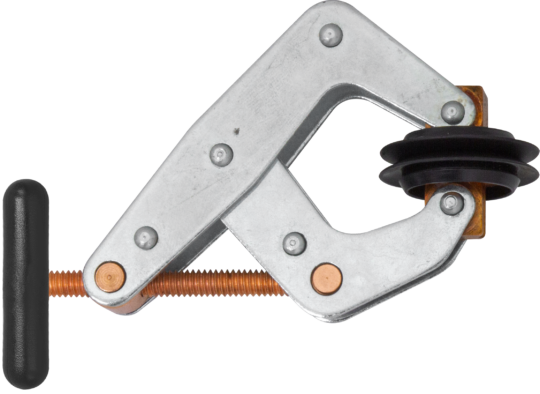

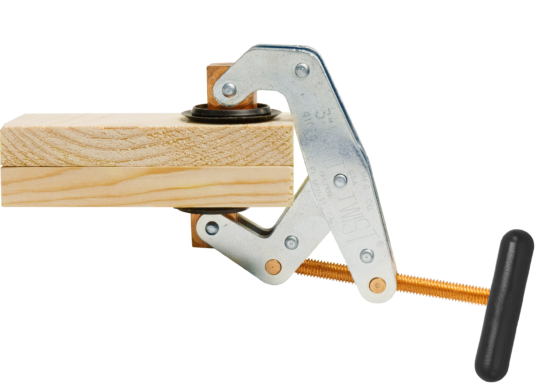

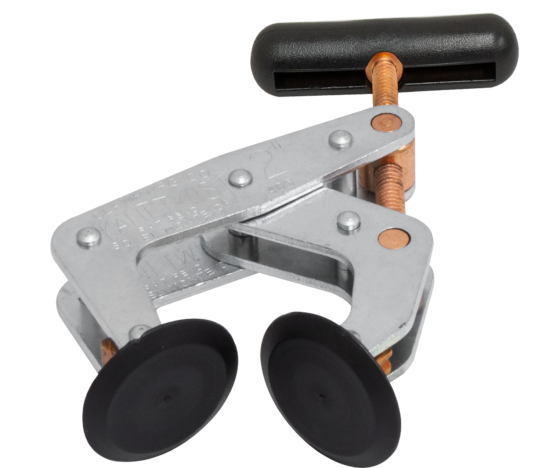

 Switch to product variant SKU K020TPW | 0.46 | 0.125 | 1.75 | T-Handle | 2 | 3.25 | 4.5 | 1.375 | 1.25 | 1.125 | 800 | |

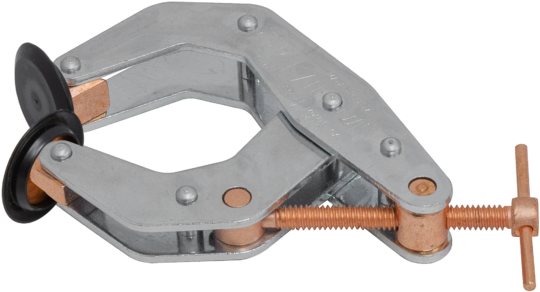

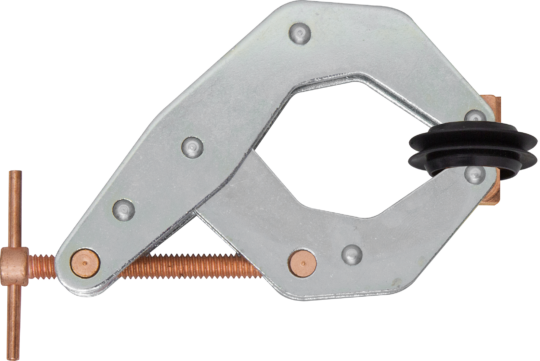

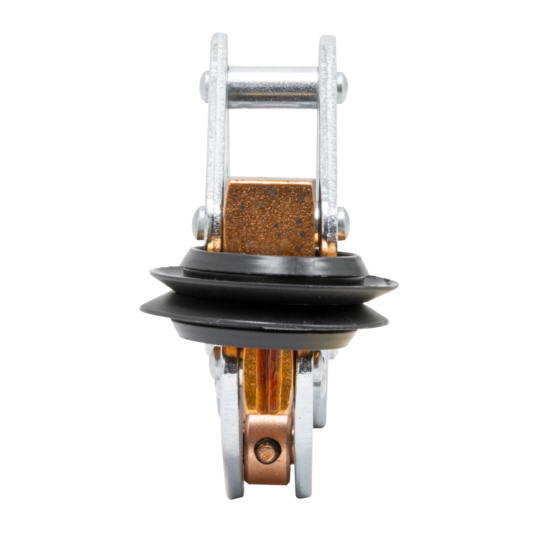

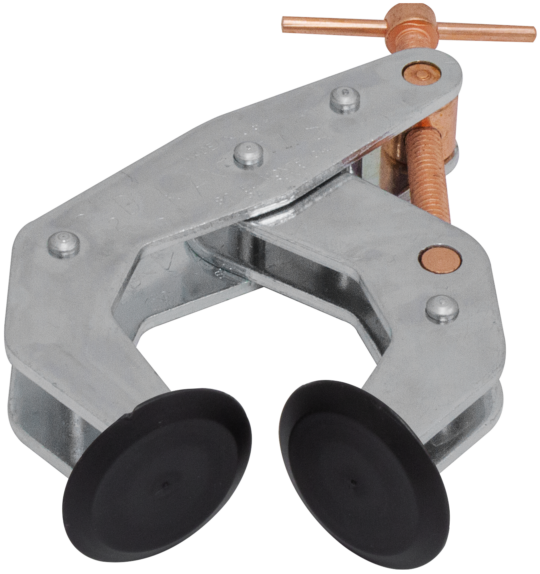

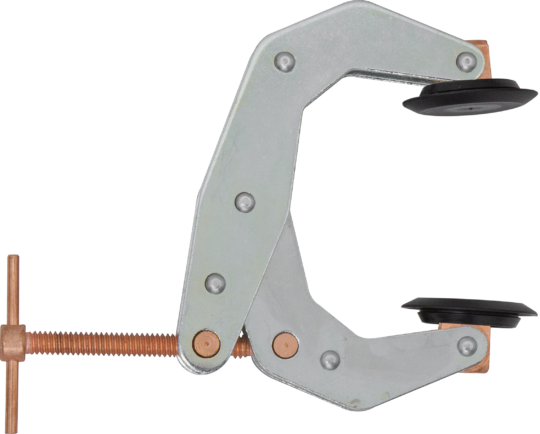

 Switch to product variant SKU K025TPD | 0.51 | 0.125 | 1.75 | T-Handle | 2.25 | 4.0625 | 4.5 | 1.375 | 1.8125 | 1.75 | 700 | |

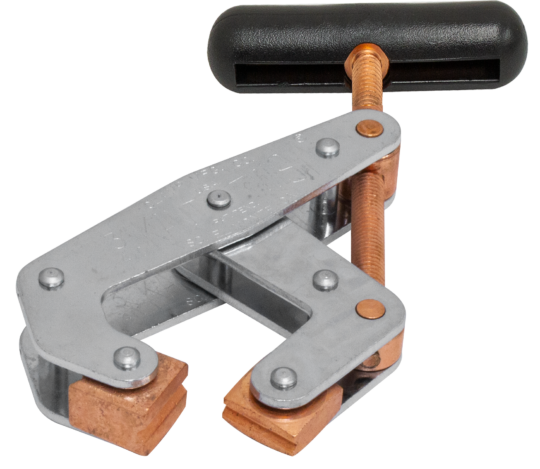

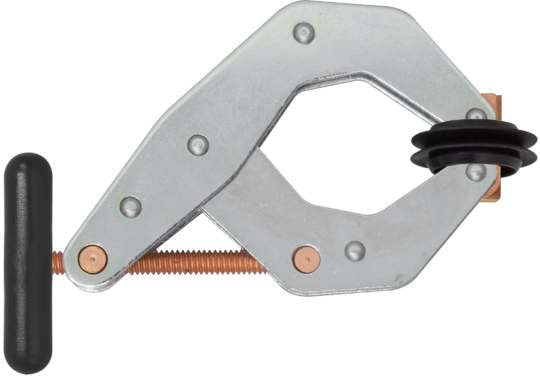

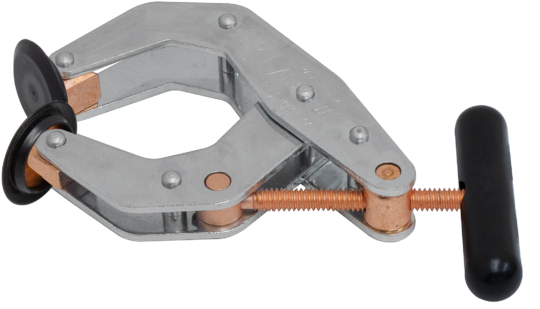

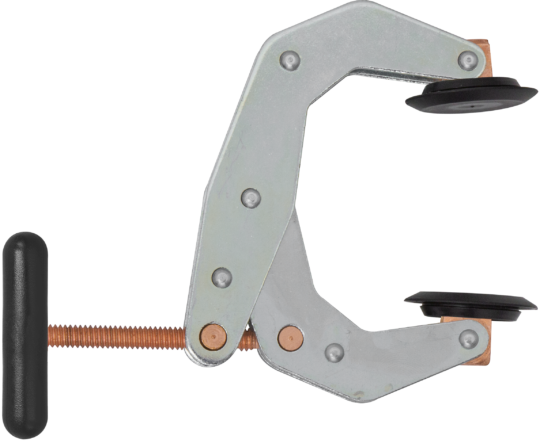

 Switch to product variant SKU K025TPDW | 0.51 | 0.125 | 1.75 | T-Handle | 2.25 | 4.0625 | 4.5 | 1.375 | 1.8125 | 1.75 | 700 | |

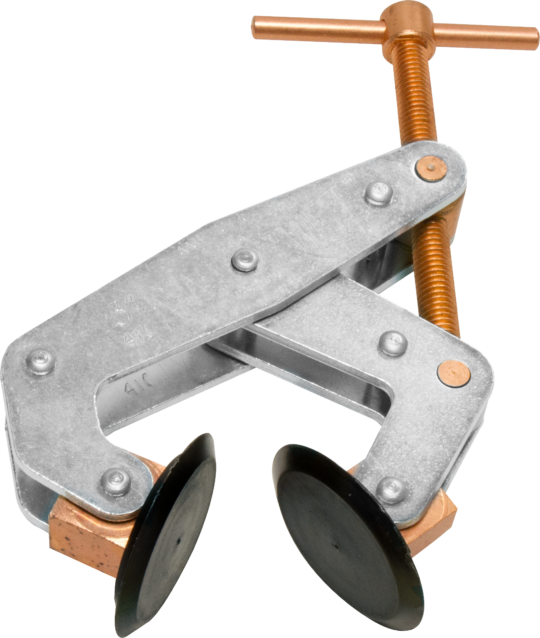

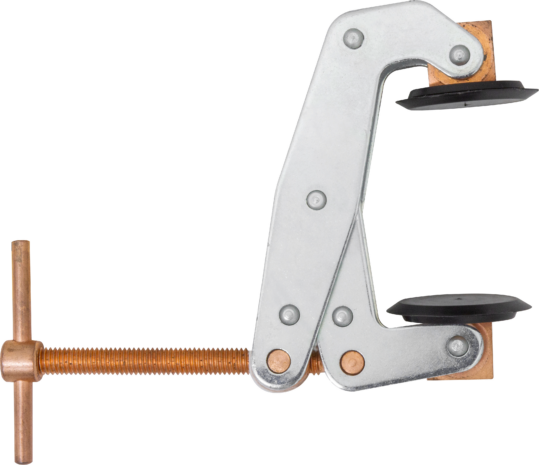

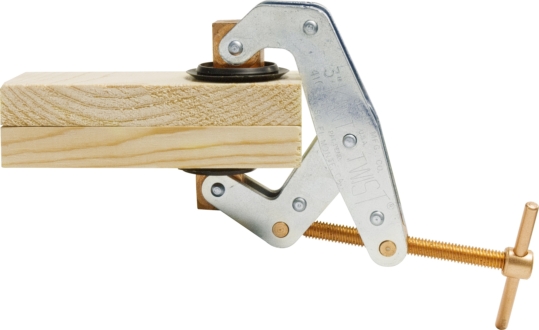

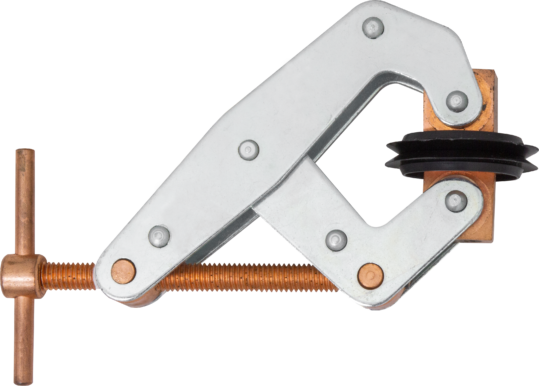

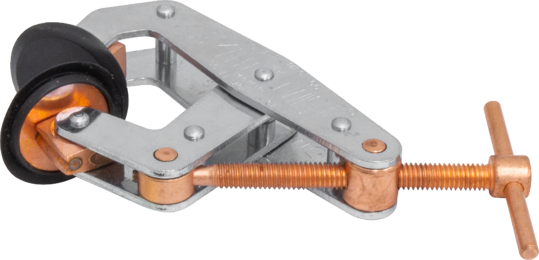

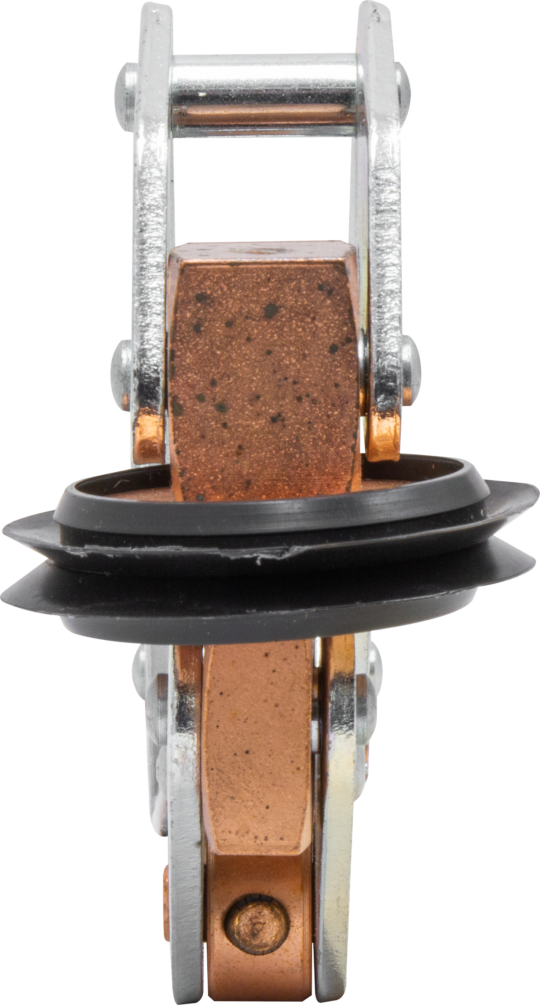

 Switch to product variant SKU K030TP | 1.26 | 0.25 | 3 | T-Handle | 3 | 5 | 6.75 | 1.875 | 1.75 | 1.25 | 1500 | |

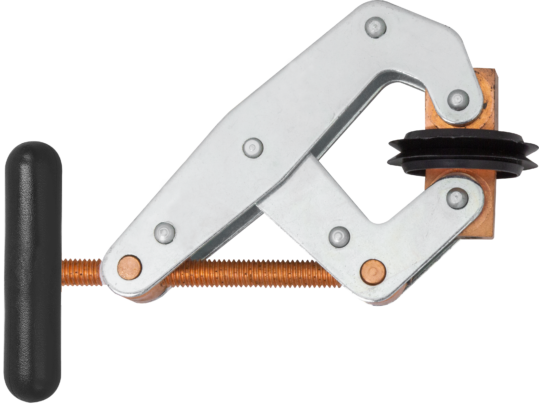

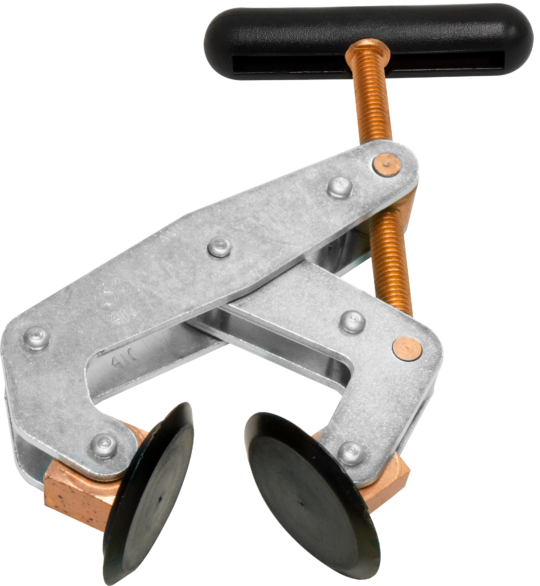

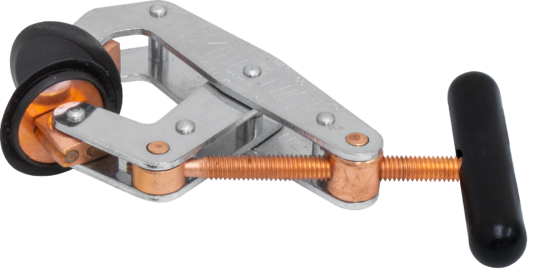

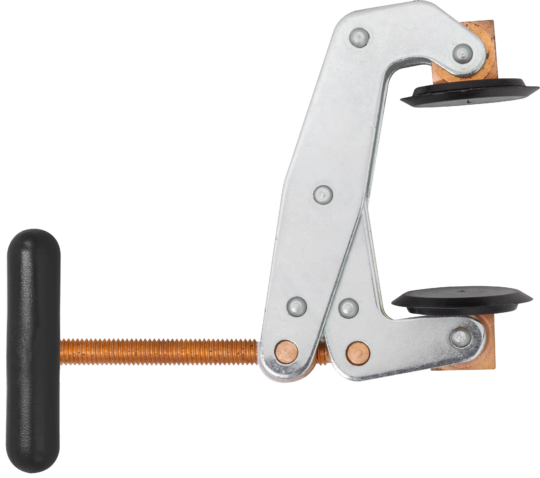

 Switch to product variant SKU K030TPW | 1.26 | 0.25 | 3 | T-Handle | 3 | 5 | 6.75 | 1.875 | 1.75 | 1.25 | 1500 | |

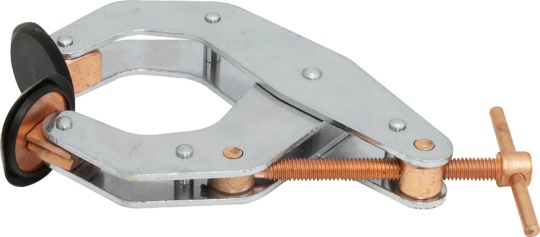

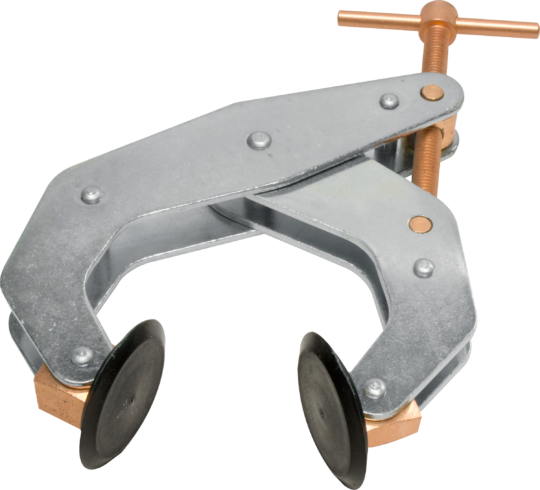

 Switch to product variant SKU K045TPD | 1.87 | 0.25 | 3 | T-Handle | 4.125 | 3.75 | 8.25 | 1.875 | 2.5 | 2.25 | 1700 | |

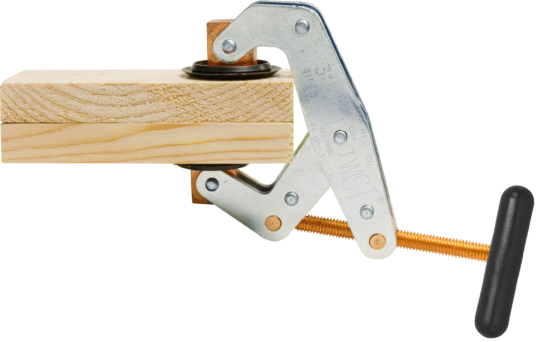

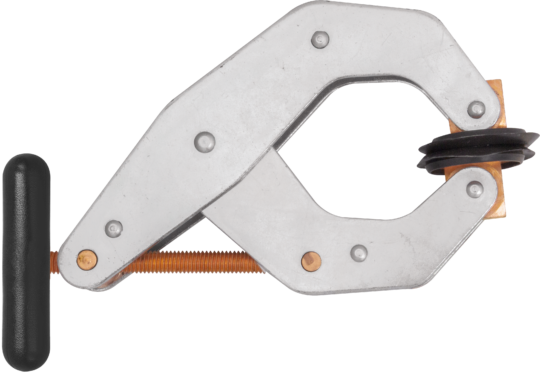

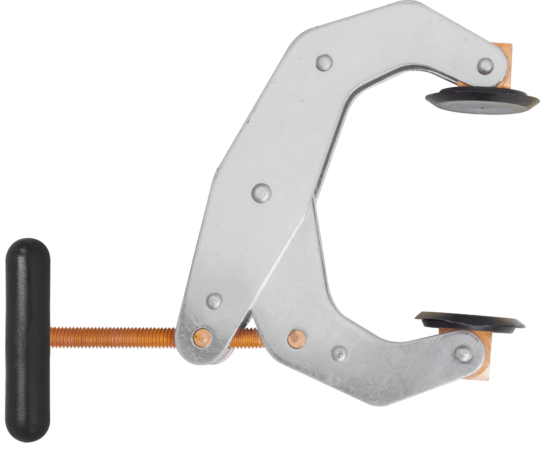

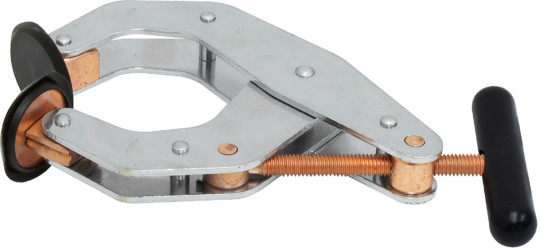

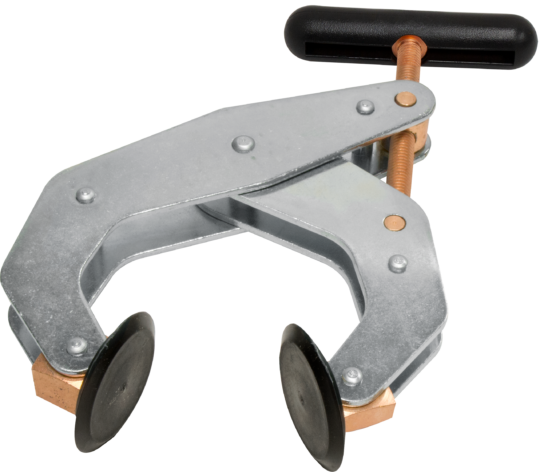

 Switch to product variant SKU K045TPDW | 1.87 | 0.25 | 3 | T-Handle | 4.125 | 6.75 | 8.25 | 1.875 | 2.5 | 2.25 | 1700 |
