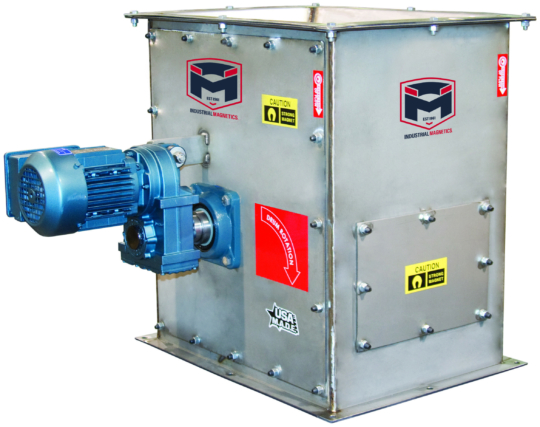

Magnetic Drum-In-Housing Separator

Name: Industrial Magnetics Inc.
Price range: $

Magnetic Drum-In-Housing Separators provide ferrous metal removal from dry, bulk products in free-flowing processing systems.

See standard models

OVERVIEW

Magnetic Drum-In-Housing separators are continuously self-cleaning units by design and can be provided as the drum only or as a complete assembly with the housing and drive included.

The material to be processed enters the top of the magnetic drum separator and flows across the surface of the drum. As the drum shell rotates around the stationary magnetic field, all non-ferrous product, which are unaffected by the magnet, falls free from the drum into the cleaned material flow. Any ferrous tramp metal is captured by the magnetic field and held on the drum's surface. As the drum rotates, the metal is carried past the diverter and released outside of the magnetic field.

Applications

Gravity Feed Product

Belt Conveyed Product

Industries

Food, Feed, & Grain

Pharmaceutical

Petrochem

Plastics

Gravity Feed Product

Belt Conveyed Product

Food, Feed, & Grain

Pharmaceutical

Petrochem

Plastics

Magnetic Drum-In-Housing Separator Products

Measurements in inches and lbs

Magnetic Drum-In-Housing Separator variants and specifications
SKU	Height	Overall Width	Weight	Motor Horsepower	Magnet Material	Inlet	Discharge
Switch to product variant SKU MDS1212C	26	32.75	280	0.5	Ceramic	16.25 x 22	Ferrous Metal: 16.25 x 8.5 \| Product: 16.25 x 10.5
Switch to product variant SKU MDS1212R	26	32.75	280	0.5	Rare Earth	16.25 x 22	Ferrous Metal: 16.25 x 8.5 \| Product: 16.25 x 10.5
Switch to product variant SKU MDS1214C					Ceramic
Switch to product variant SKU MDS1214R					Rare Earth
Switch to product variant SKU MDS1216C					Ceramic
Switch to product variant SKU MDS1216R					Rare Earth
Switch to product variant SKU MDS1218C					Ceramic
Switch to product variant SKU MDS1218R					Rare Earth
Switch to product variant SKU MDS1220C					Ceramic
Switch to product variant SKU MDS1220R					Rare Earth
Switch to product variant SKU MDS1224C	26	44.75	560	0.5	Ceramic	28.25 x 22	Ferrous Metal: 28.25 x 8.5 \| Product: 28.25 x 10.5
Switch to product variant SKU MDS1224R	26	44.75	560	0.5	Rare Earth	28.25 x 22	Ferrous Metal: 28.25 x 8.5 \| Product: 28.25 x 10.5
Switch to product variant SKU MDS1230C					Ceramic
Switch to product variant SKU MDS1230R					Rare Earth
Switch to product variant SKU MDS1236C	26	56.75	660	0.5	Ceramic	40.25 x 22	Ferrous Metal: 40.25 x 8.5 \| Product: 40.25 x 10.5
Switch to product variant SKU MDS1236R	26	56.75	660	0.5	Rare Earth	40.25 x 22	Ferrous Metal: 40.25 x 8.5 \| Product: 40.25 x 10.5
Switch to product variant SKU MDS1242C					Ceramic
Switch to product variant SKU MDS1242R					Rare Earth
Switch to product variant SKU MDS1512C	30	32.75	350	0.5	Ceramic	16.25 x 25	Ferrous Metal: 16.25 x 10 \| Product: 16.25 x 12
Switch to product variant SKU MDS1512R	30	32.75	350	0.5	Rare Earth	16.25 x 25	Ferrous Metal: 16.25 x 10 \| Product: 16.25 x 12
Switch to product variant SKU MDS1514C					Ceramic
Switch to product variant SKU MDS1514R					Rare Earth
Switch to product variant SKU MDS1516C					Ceramic
Switch to product variant SKU MDS1516R					Rare Earth
Switch to product variant SKU MDS1518C					Ceramic
Switch to product variant SKU MDS1518R					Rare Earth
Switch to product variant SKU MDS1520C					Ceramic
Switch to product variant SKU MDS1520R					Rare Earth
Switch to product variant SKU MDS1524C	30	44.75	700	0.5	Ceramic	28.25 x 25	Ferrous Metal: 28.25 x 10 \| Product: 28.25 x 12
Switch to product variant SKU MDS1524R	30	44.75	700	0.5	Rare Earth	28.25 x 25	Ferrous Metal: 28.25 x 10 \| Product: 28.25 x 12
Switch to product variant SKU MDS1530C					Ceramic
Switch to product variant SKU MDS1530R					Rare Earth
Switch to product variant SKU MDS1536C	30	59.75	825	1	Ceramic	40.25 x 25	Ferrous Metal: 40.25 x 10 \| Product: 40.25 x 12
Switch to product variant SKU MDS1536R	30	59.75	825	1	Rare Earth	40.25 x 25	Ferrous Metal: 40.25 x 10 \| Product: 40.25 x 12
Switch to product variant SKU MDS1542C					Ceramic
Switch to product variant SKU MDS1542R					Rare Earth
Switch to product variant SKU MDS1548C					Ceramic
Switch to product variant SKU MDS1548R					Rare Earth
Switch to product variant SKU MDS1812C	36	32.75	435	0.5	Ceramic	16.25 x 28	Ferrous Metal: 16.25 x 11.5 \| Product: 16.25 x 13.5
Switch to product variant SKU MDS1812R	36	32.75	435	0.5	Rare Earth	16.25 x 28	Ferrous Metal: 16.25 x 11.5 \| Product: 16.25 x 13.5
Switch to product variant SKU MDS1814C					Ceramic
Switch to product variant SKU MDS1814R					Rare Earth
Switch to product variant SKU MDS1816C					Ceramic
Switch to product variant SKU MDS1816R					Rare Earth
Switch to product variant SKU MDS1818C					Ceramic
Switch to product variant SKU MDS1818R					Rare Earth
Switch to product variant SKU MDS1820C					Ceramic
Switch to product variant SKU MDS1820R					Rare Earth
Switch to product variant SKU MDS1824C	36	47.75	750	1	Ceramic	28.25 x 28	Ferrous Metal: 28.25 x 11.5 \| Product: 28.25 x 13.5
Switch to product variant SKU MDS1824R	36	47.75	750	1	Rare Earth	28.25 x 28	Ferrous Metal: 28.25 x 11.5 \| Product: 28.25 x 13.5
Switch to product variant SKU MDS1830C					Ceramic
Switch to product variant SKU MDS1830R					Rare Earth
Switch to product variant SKU MDS1836C	36	59.75	970	1	Ceramic	40.25 x 28	Ferrous Metal: 40.25 x 11.5 \| Product: 40.25 x 13.5
Switch to product variant SKU MDS1836R	36	59.75	970	1	Rare Earth	40.25 x 28	Ferrous Metal: 40.25 x 11.5 \| Product: 40.25 x 13.5
Switch to product variant SKU MDS1842C					Ceramic
Switch to product variant SKU MDS1842R					Rare Earth
Switch to product variant SKU MDS1848C					Ceramic
Switch to product variant SKU MDS1848R					Rare Earth
Switch to product variant SKU MDS2418C	48	44.5	1265	1	Ceramic	25 x 38	Ferrous Metal: 25 x 13.5 \| Product: 25 x 19.5
Switch to product variant SKU MDS2418R	48	44.5	1265	1	Rare Earth	25 x 38	Ferrous Metal: 25 x 13.5 \| Product: 25 x 19.5
Switch to product variant SKU MDS2420C					Ceramic
Switch to product variant SKU MDS2420R					Rare Earth
Switch to product variant SKU MDS2424C	48	50.5	1375	1	Ceramic	31 x 38	Ferrous Metal: 31 x 13.5 \| Product: 31 x 19.5
Switch to product variant SKU MDS2424R	48	50.5	1375	1	Rare Earth	31 x 38	Ferrous Metal: 31 x 13.5 \| Product: 31 x 19.5
Switch to product variant SKU MDS2430C					Ceramic
Switch to product variant SKU MDS2430R					Rare Earth
Switch to product variant SKU MDS2436C	48	64.5	1800	1.5	Ceramic	43 x 38	Ferrous Metal: 43 x 13.5 \| Product: 43 x 19.5
Switch to product variant SKU MDS2436R	48	64.5	1800	1.5	Rare Earth	43 x 38	Ferrous Metal: 43 x 13.5 \| Product: 43 x 19.5
Switch to product variant SKU MDS2442C					Ceramic
Switch to product variant SKU MDS2442R					Rare Earth
Switch to product variant SKU MDS2448C					Ceramic
Switch to product variant SKU MDS2448R					Rare Earth
Switch to product variant SKU MDS2454C					Ceramic
Switch to product variant SKU MDS2454R					Rare Earth
Switch to product variant SKU MDS2460C					Ceramic
Switch to product variant SKU MDS2460R					Rare Earth

Downloads

Technical Datasheet

Drum Separators

Download

Manual

Drum Separator Manual

Download
