Rare Earth Neodymium Insulated Brass Assemblies

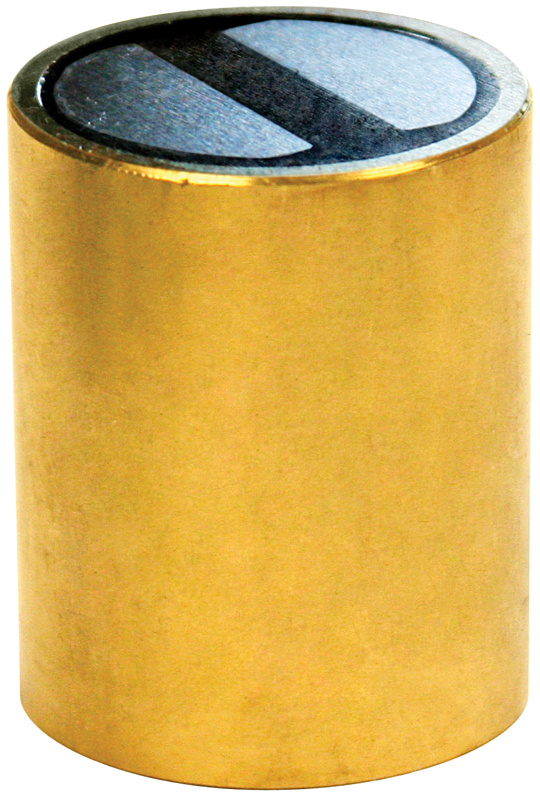

Rare Earth Neodymium parallel 2-Pole magnet in a brass insulated cup.
Product image not available.
OVERVIEW
Ideal for metric press fit applications. +/- .002” diameter & length. Maximum temperature 180°F (82°C).
Rare Earth Neodymium Insulated Brass Assemblies Products
| SKU | Diameter | Length | Weight | Holding Value | Magnetic Pole Quantity | In Stock |
|---|---|---|---|---|---|---|
| Switch to product variant SKU PF10N | 10 mm | 20 mm | 0.03 | 4.4 | 2 | |
| Switch to product variant SKU PF13N | 13 mm | 20 mm | 0.04 | 6.6 | 2 | |
| Switch to product variant SKU PF16N | 16 mm | 20 mm | 0.06 | 13.8 | 2 | |
| Switch to product variant SKU PF20N | 20 mm | 25 mm | 0.14 | 25.4 | 2 | |
| Switch to product variant SKU PF06S | 06 mm | 20 mm | 0.02 | 0.9 | 2 |
Downloads
